MIR Minispir spirometer

MIR Minispir spirometer plugs directly into the USB socket on your PC. No batteries and no other connection required. Ideal and easy solution for custom made applications. FVC, VC, IVC, MVV, PRE-POST BD. Internal temperature sensor for automatic BTPS conversion. Available with disposable or reusable digital turbine flowmeters. MiniSpir calculates all parameters referred to in peer reviewed scientific literature (ie: min, max, mean SpO2 and Pulse Rate, Delta Index, T90%, T89%, T88%, T5 etc.)

Categories: ,

Description

MIR Minispir spirometer plugs directly into the USB socket on your PC. No batteries and no other connection required. Ideal and easy solution for custom made applications. FVC, VC, IVC, MVV, PRE-POST BD. Internal temperature sensor for automatic BTPS conversion. Available with disposable or reusable digital turbine flowmeters. MiniSpir calculates all parameters referred to in peer reviewed scientific literature (ie: min, max, mean SpO2 and Pulse Rate, Delta Index, T90%, T89%, T88%, T5 etc.)

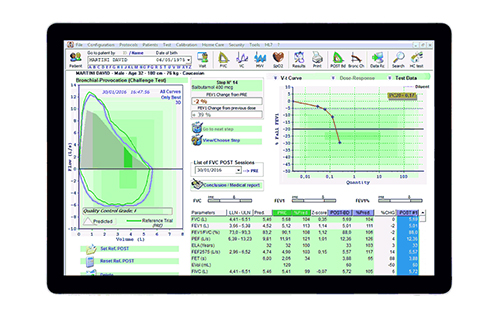

Always included: Winspiro PRO® PC software with free update

Optional function available: Oximeter with adult or paediatric finger probe

Available with both DISPOSABLE or REUSABLE turbine flowmeter

Spirometry test: FVC, VC, IVC, MVV,PRE/POST Bronchodilator comparison with a wide range of selectable parameters

Functions:

  • Measured spirometry parameters: FVC, FEV1, FEV1/FVC, FEV1/VC, PEF, FEF25, FEF50, FEF75, FEF25–75, FEF75–85, Lung Age, Extrapolated Volume, FET, Time to PEF, FEV0.5, FEV0.5/FVC, FEV0.75, FEV0.75/FVC, FEV2, FEV2/FVC, FEV3, FEV3/FVC, FEV6, FEV1/ FEV6, FEV1/PEF, FEV1/FEV0.5, FIVC, FIV1, FIV1/FIVC, PIF, FIF25, FIF50, FIF75, FEF50/FIF50, VC, IVC, IC, ERV, IRV, Rf, VE, VT, tI, tE, VT/tI, tE/tTOT, MVV (measured), MVV (calculated).
  • Measured oximetry parameters: %SpO2 and Pulse Rate (Min, Max, Average), Test duration, Total SpO2 Events, T90% (SpO2 time ≤89%), T89% (SpO2 time ≤88%), T40 (Bradycardia duration with Pulse Rate <40 BPM), T120 (Tachycardia duration with Pulse Rate >120 BPM).
  • Real time Flow/Volume loops and Volume/time curves with PRE/POST comparison.
  • Advanced spirometry test interpretation.
  • Pediatric incentive animations.
  • Lung age estimation (ELA).
  • Methacoline and Mannitol provocation test with FEV1 dose-response curve.
  • Temperature sensor for BTPS conversion.
  • Online Oximetry (option).Temperature sensor: semiconductor (0-45°C)
  • Flow sensor: bi-directional digital turbine
  • Flow range: ± 16 L/s
  • Volume accuracy: ± 3% or 50 mL
  • Flow accuracy: ± 5% or 200 mL/s
  • Dynamic resistance at 12 L/s: <0.5 cmH2O/L/s
  • Communication port: USB
  • Power Supply: line powered from USB port
  • Dimensions: 142×49.7×26 mm
  • Weight: 2.5 Oz (65 gram)



Download PDF
